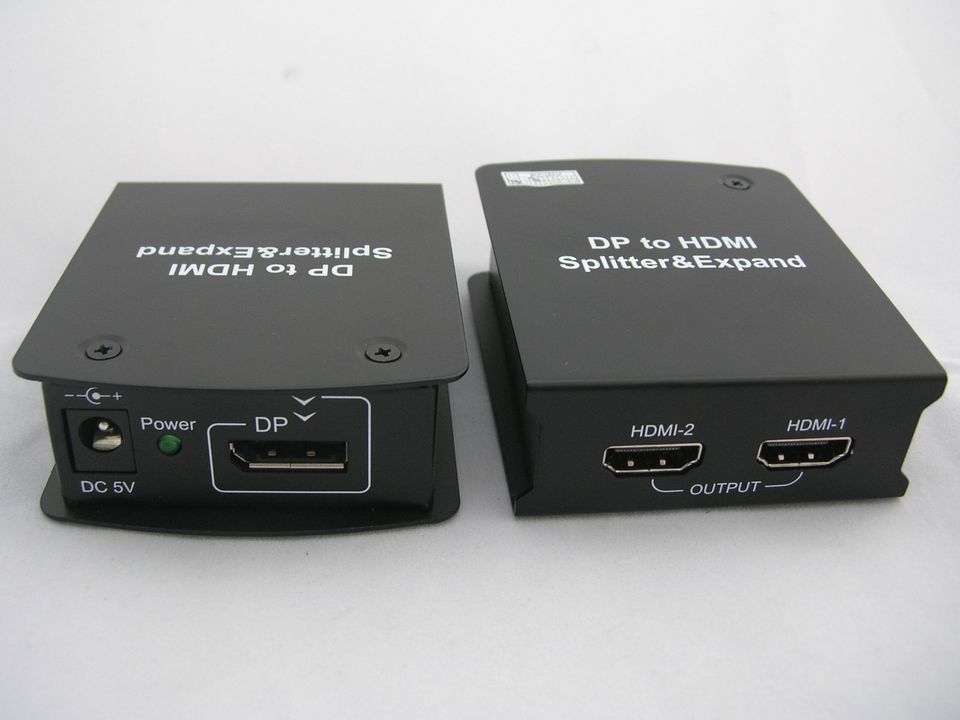

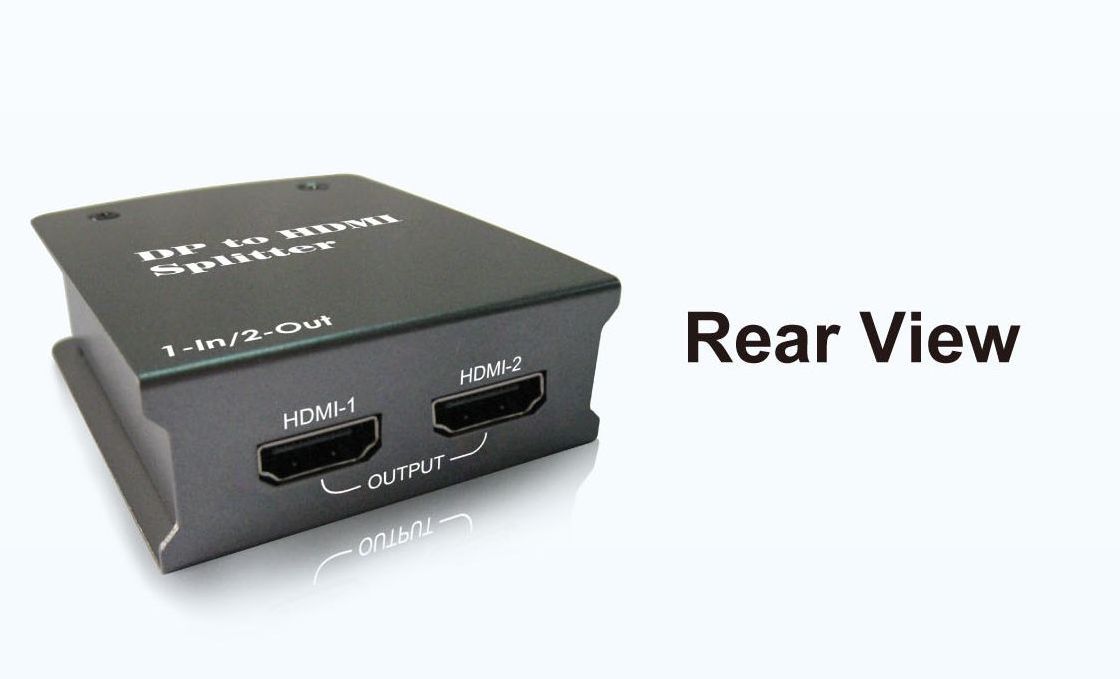

DP-H12扩屏器DP一进二出产品硬件特性简易说明：
1.纯硬件DP输入双hdmi输出扩屏器，支持拼接，无需加载驱动;
2.通用接口简单易连：DP输入连接笔记本或显卡方便，HDMI输出接口，连接液晶电视显示器视频接口方便。
3.无操作系统限制，兼容PC Windows与苹果系统，兼容PC，笔记本Mini DP与apple Thunderbolt雷电接口
4.DP splitter分屏器功能：一路DP输入（DP1.1，兼容DP1.2），两路HDMI高清输出；单屏分辨率可到1920*1080，双屏显示完全相同内容画面。

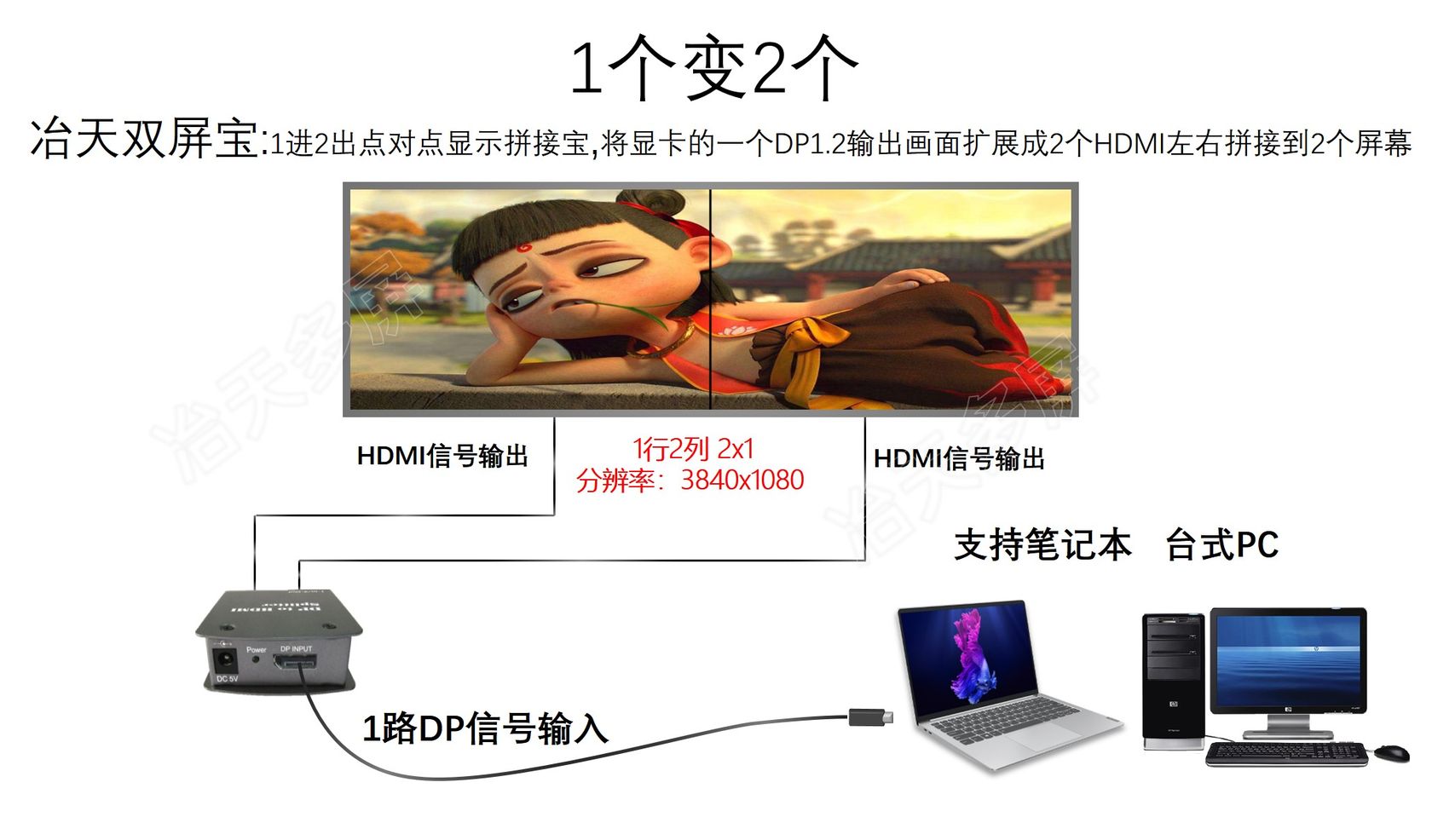

5.DP HUB expander扩屏拉伸功能：一路DP输入（DP1.1，兼容DP1.2），两路HDMI高清输出总分辨率可达3840*1080，双屏拼接显示一个完整大桌面，每屏显示一个画面的二分之一内容。

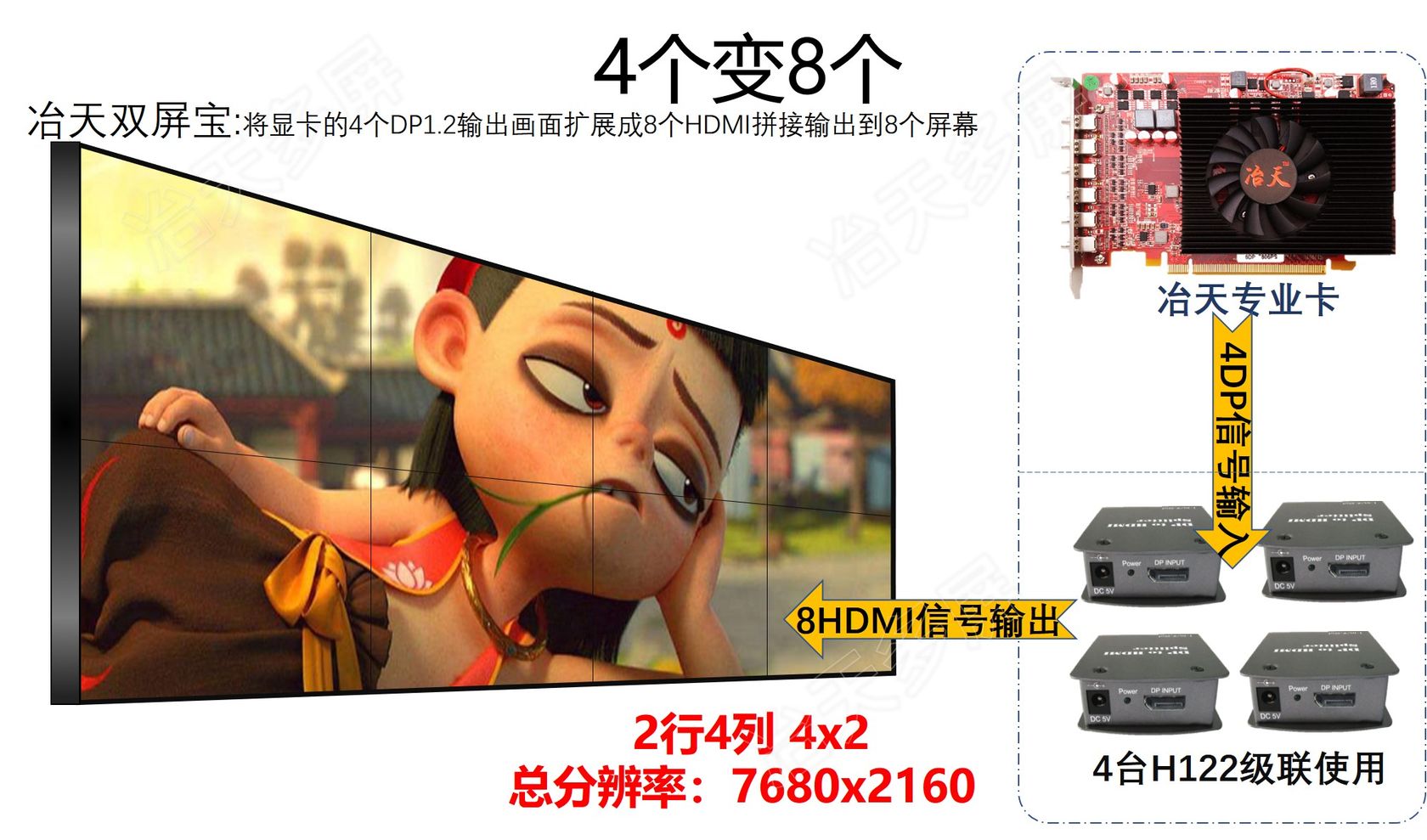

6.DP hub 级联：通过多路DP输出显卡，可以实现2*2, 4*2, 4*3， 4*4，6*2等多屏拼接大屏显示电视墙模式。
7.EDID自动识别，自动判断显示器最佳解析度

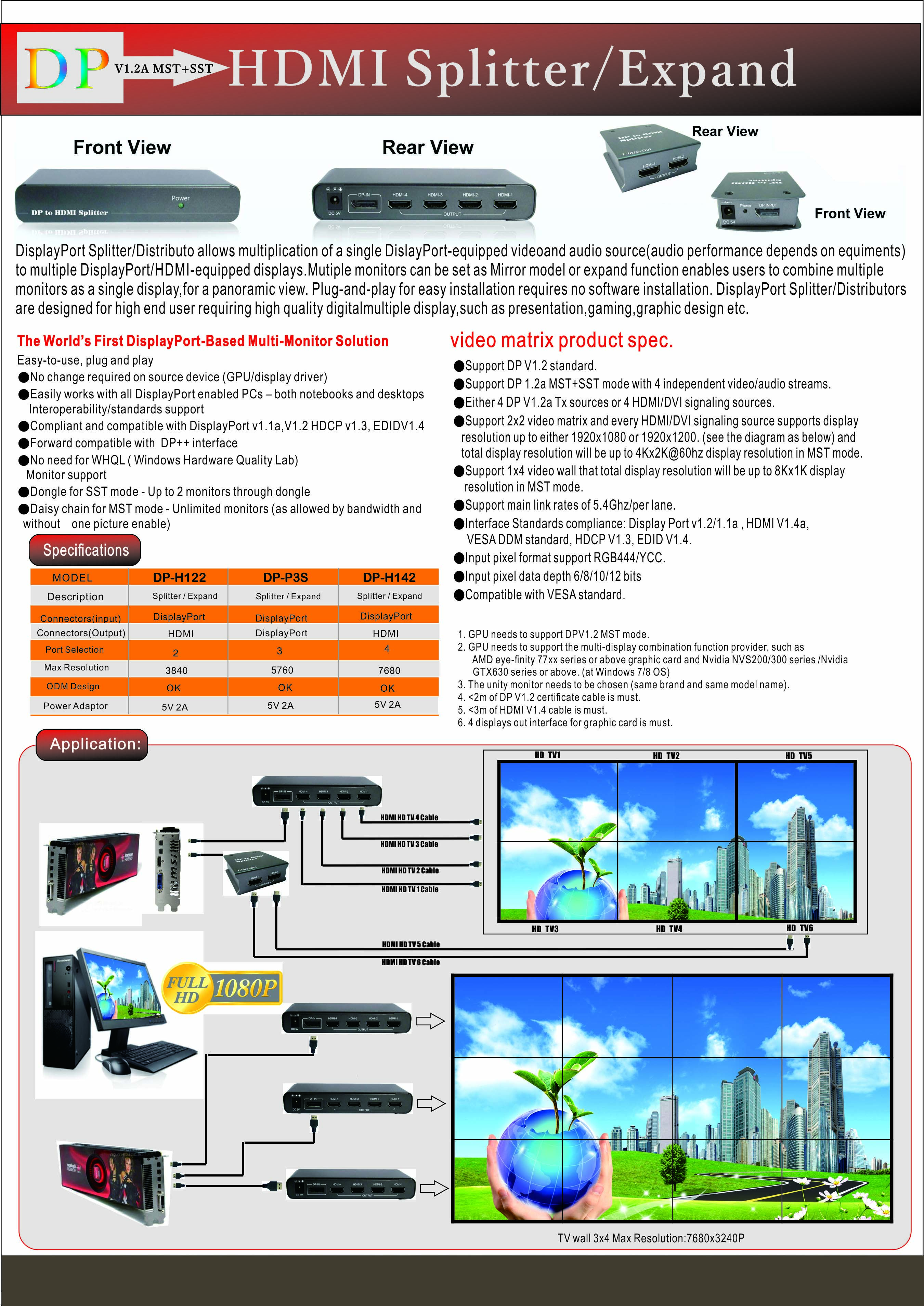

MST hub DP TO HDMI splitter产品特性 Specification
|
Model 型号 |
DP-HUB3S |
DP-HUB-4S |
|
|
|
Description 描述 |
DP to DP |
DP to DP |
DP to HDMI |
DP to HDMI |
|
Connectors (Input)
输入接口 |
DP female x 1 |
DP female x 1 |
DP female x 1 |
DP female x 1 |
|
Connectors (Output)
输出接口 |
DP female x 3 |
DP female x 4 |
HDMI Type-A female x 2 |
HDMI Type-A female x 4 |
|
Port Selection |
3 |
4 |
2 |
4 |
|
Max Resolution 解析度 |
3840 x 1024 |
4092 x 768 |
3840 x 1200 |
4092 x 768 |
|
Power Adapter 电源 |
5V 2A |
5V 2A |
5V 1A |
5V 2A |
|
Housing 母座 |
Metal |
Metal |
Metal |
Metal |
|
Transmission Distance
传输距离 |
3m for full bandwidth |
3m for full bandwidth |
3m for full bandwidth |
3m for full bandwidth |
|
Operating Temperature
操作温度 |
0~40℃ |
0~40℃ |
0~40℃ |
0~40℃
|
|
Storage Temperature
存储温度 |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
|
Humidity 湿度 |
0~90% RH
Non-Condensing |
0~90% RH
Non-Condensing |
0~90% RH
Non-Condensing |
0~90% RH
Non-Condensing |
|
Dimension(mm) 尺寸 |
145 x 65.2 x 25 |
77 x 64 x 25 |
145 x 65.2 x 25 |
Note：*If your device can’t play the video, please check these points listing below for your reference:
如果设备输出之影像异常或着是无法显示请确认以下：
The first connector to the DHS/ DDS series products have to support the resolution 1920 * 1080P.
设备的第一个端口必须接上支持分辨率1080p (1920 x 1200) 之显示器。
Because OS of Windows itself have the max limited of the resolution, it will be problem to show all the view as you use 4x4 or more receiver.
由于Windows显示分辨率限制之故，于使用4 x 4电视墙时可能无法全屏显示
As the system is set up ready, and you add new receivers on, please re-open all the power to do the handshake again.
接上讯号来源设备后可能因为显示器沟通问题导致画面异常，请重新启动来源设备
HDMI has its own resolution limited. If you can’t find the resolution for all the receiver, you might use VGA or DVI to get more resolution to work first.
由于HDMI支持分辨率之限制，可能造成数台显示器无法取得共通之分辨率，可将输出转换为VGA或DVI接口来解决此限制
If you still can’t find higher resolution to support your receiver, we suggest you adjust the lower resolution for all first, and higher to the max.
请先使用较低的分辨率来进行设定，待各显示器运作正常后再逐一向上调整，并优先使用列表中推荐之分辨率做设定
If you contact dp connector to dvi/hdmi/vga monitor, you must use the active dp to dvi/hdmi/vga dongle
如果连接DP接口到HDMI/DVI/VGA的显示器上，必须使用主动式DP转VGA/DVI/HDMI的转接器。

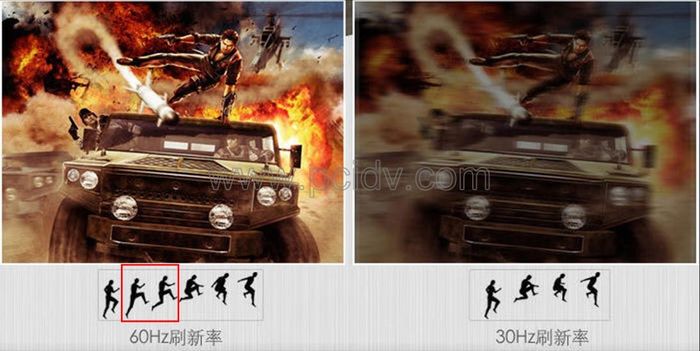

2*2液晶四屏拼接播放4K*2K视频60帧@60Hz超高刷新率
显卡16屏拼接液晶电视墙4*4 拼接方案
