Part number |

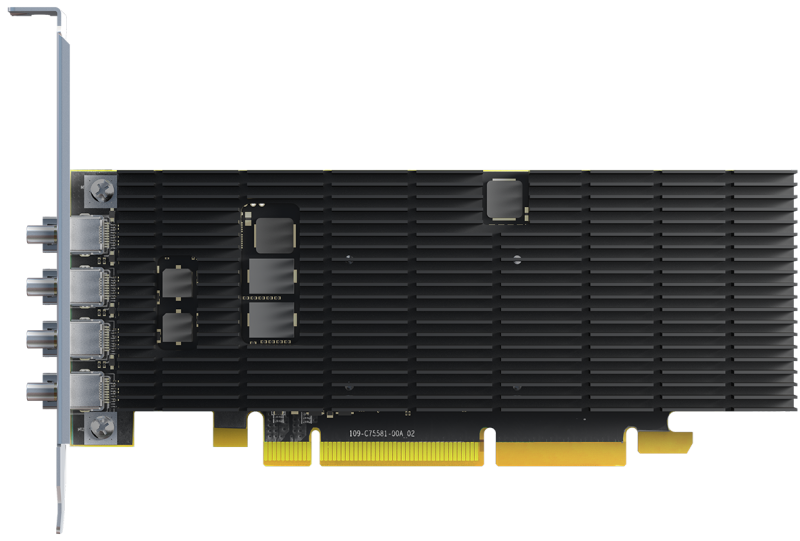

LUMA-A310 |

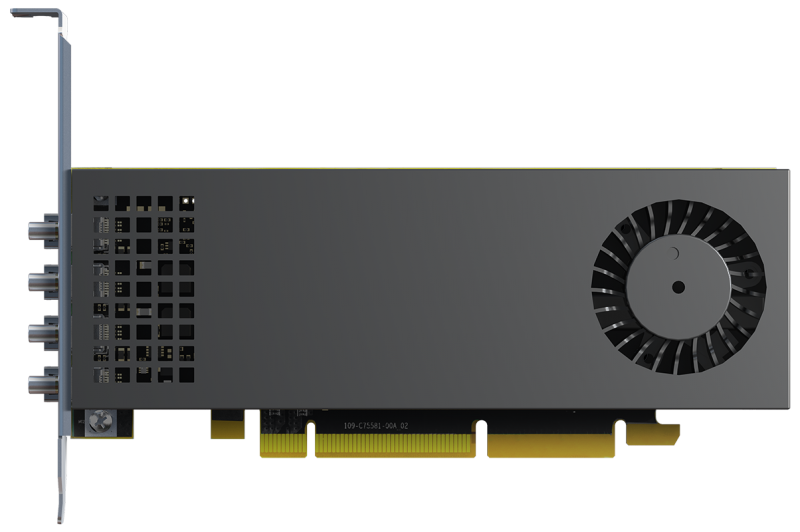

LUMA-A310F |

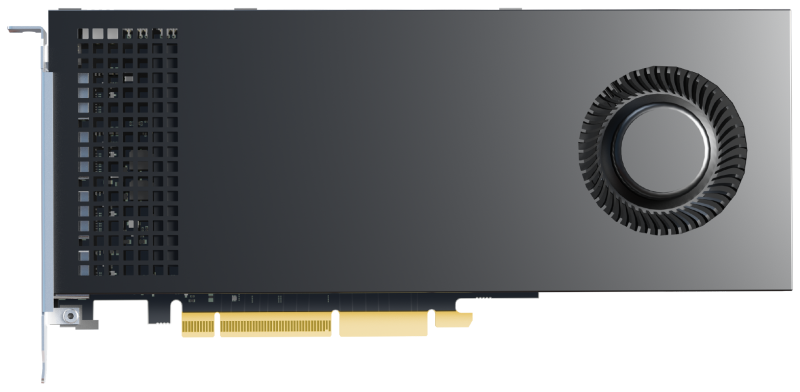

LUMA-A380 |
Bus type |
PCIe 4.0 x16 (x8 electrical) |
PCIe 4.0 x16 (x8 electrical) |
PCIe 4.0 x16 (x8 electrical) |
Number of video outputs |
4 |
4 |
4 |
Video output connectors |
4x Mini DisplayPort (secure) |
4x Mini DisplayPort (secure) |
4x DisplayPort |
DisplayPort specification |
2.1 UHBR10 |
2.1 UHBR10 |
2.1 UHBR10 |
Maximum number of cards in a system |
4 |
4 |
4 |
Performance |
Maximum resolution |
2x 8K60/5K120 or 4x 5K60 HDR 12b |
2x 8K60/5K120 or 4x 5K60 HDR 12b |
2x 8K60/5K120 or 4x 5K60 HDR 12b |
Bit depth and color space |
• Up to 36 bpp (Bits per Pixel) • YCbCR 4:4:4 • YCbCR 4:2:0 • RGB |
• Up to 36 bpp (Bits per Pixel) • YCbCR 4:4:4 • YCbCR 4:2:0 • RGB |
• Up to 36 bpp (Bits per Pixel) • YCbCR 4:4:4 • YCbCR 4:2:0 • RGB |
Memory |
4GB GDDR6 |
4GB GDDR6 |
6GB GDDR6 |
GPU |
Intel® Arc™ A310 |
Intel® Arc™ A310 |
Intel® Arc™ A380 |
Multi-stream audio |
High-definition audio streams on four digital ports simultaneously |
Additional features |
DisplayPort features |
VESA DSC 1.2a and Adaptive Sync |
HDCP compliance |
2.3 |
2.3 |
2.3 |
Board-to-board framelock |
|
|
|
Supported graphics API |
DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3, oneAPI, OpenVINO |
Hardware video encode/decode |
H264/H265/AV1/VP9 |
Environmental & Power consumption |
Cooling |
Passive |
Active |
Active |
Power consumption |
30W |
50W |
75W |
Operating temperature |
0 to 45 ºC (32 to 113°F) |
0 to 45 ºC (32 to 113°F) |
0 to 45 ºC (32 to 113°F) |
Hardware |
Form factor |
Low Profile Single Slot |
Low Profile Single Slot |
Standard Height Single Slot |
Dimensions |
Length: 16.76 cm (6.6”) Height: 6.86 cm (2.7”) |
Length: 16.76 cm (6.6”) Height: 6.86 cm (2.7”) |
Length: 25.38 cm (9.99”) Height: 12.68 cm (4.99”) |
Bracket |
Standard Height (Mounted) Low Profile (in the box) |
Standard Height (Mounted) Low Profile (in the box) |
Standard Height |
Environmental & Power consumption |
Regulatory compliance |
FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B, KC (Korea) Class B, ICES-3 (Canada) Class B, UKCA (United Kingdom) Class B. |
Environmental compliance |
EU RoHS, China RoHS, REACH |
Warranty* |
3 years |
3 years |
3 years |
Software & API |
Matrox PowerDesk for Windows |
3 |
3 |
3 |
Mura Developer tools |
3 |
3 |
3 |
Operating systems |
Windows 10/11, Ubuntu 22.04** |
System requirements |
Single available PCIe 3.0 (or newer) x8 slot, Resizable BAR (reBAR) or Smart Access Memory (SAM) |
Accessories (sold separately) |
Mini DisplayPort to DisplayPort adapter |
CAB-MDP-DPF |
CAB-MDP-DPF |
|
Secure cable solution |
SK-SLNB-4F |
SK-SLNB-4F |
— |
